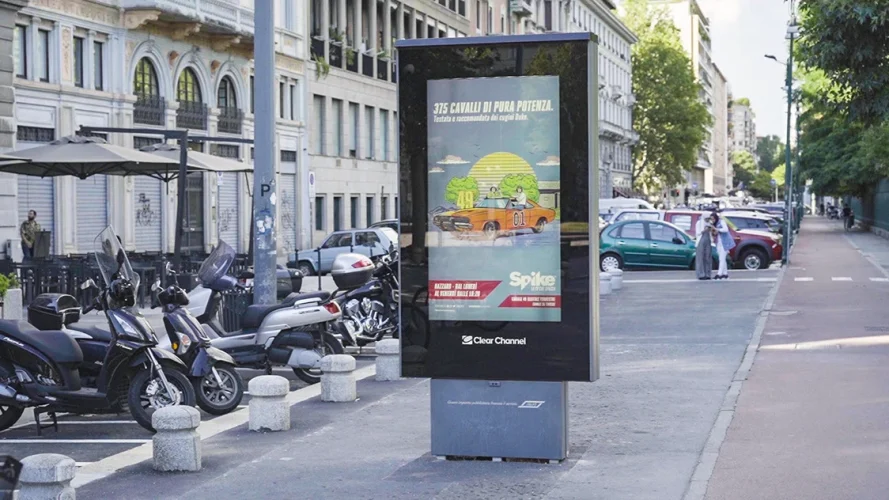

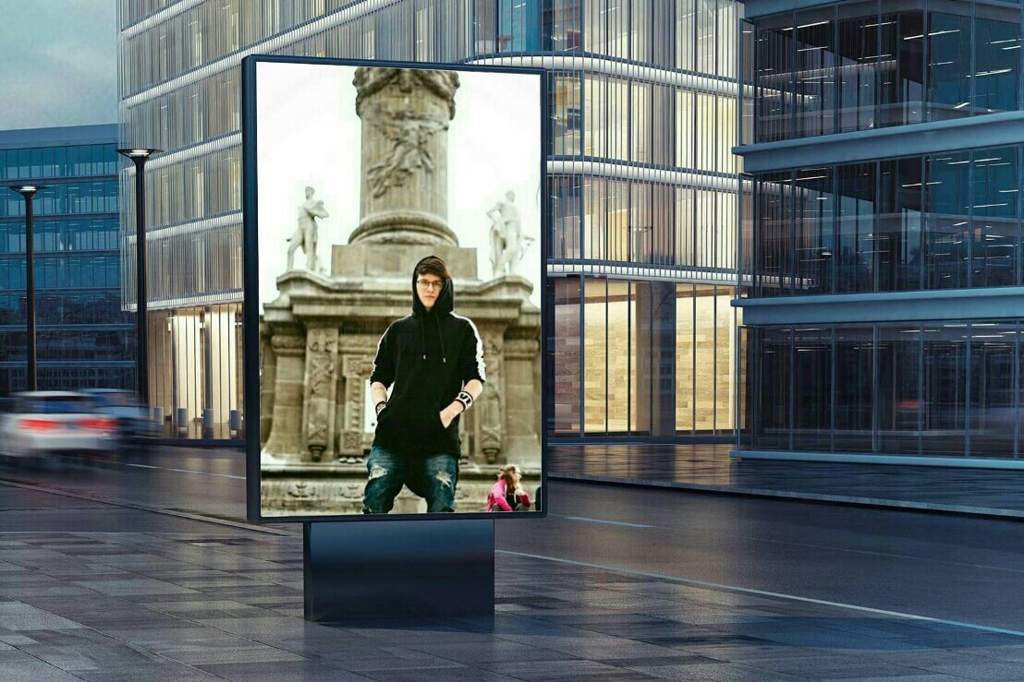

Diamond Poster Series
Exquisite Picture Quality
Stable and Reliable
Integrated Solutions
Cluster Control
Automatic Brightness Adjustment
| Item Number | FAB-DP1.9 | FAB-DP2.6 | FAB-DP2.9 |
|---|---|---|---|
| Pixel Pitch(mm) | 1.95 | 2.6 | 2.97 |
| Pixel Density(dots/SQM) | 262,144 | 147,456 | 112,896 |
| LED Type | SMD1212 | SMD1212 | SMD1515 |
| Module Resolution(pixels) | 128*128 | 96*96 | 84*84 |
| Display Dimension (W*H, mm) | 1,000*2,000 | 1,000*2,000 | 1,000*2,000 |
| Cabinet Size(mm) | 1,200*2,700 | 1,200*2,700 | 1,200*2,700 |
| Cabinet Weight(KG) | 260 | 260 | 260 |
| Brightness(Nits) | 3,000–4,000 | 3,000–4,000 | 4,800–5,300 |
| Refreshment(Hz) | 3,840 | 3,840 | 3,840 |
| Grey Scale(Bit) | 14–16 | 14–16 | 14–16 |
| Max Power Consumption(W/SQM) | 560±3% | 560±3% | 560±3% |
| Ave Power Consumption(W/SQM) | 168 | 168 | 168 |
| Maintenance Type | Front/Rear | Front/Rear | Front/Rear |
| Ingress Protection | IP65/IP65 | IP65/IP65 | IP65/IP65 |
